SQL Execution Plan: How to Read It To Improve Your Queries

Table of Contents

    What is an execution plan? Let’s break it down. An SQL Execution Plan is a roadmap provided by a database management system (DBMS) which outlines how the system will retrieve the requested data. This plan represents the optimized pathway for accessing information from databases, helping to maximize efficiency and minimize resource usage.

    This article aims to:

    • Break down the complexities of SQL Execution Plans for enhanced database query performance.
    • Provide a clear guide on generating, interpreting, and optimizing SQL Execution Plans.
    • Highlight key components of execution plans and their impact on database efficiency.
    • Share actionable strategies for addressing high-cost operations and refining query performance.
    • Offer best practices for simplifying SQL queries and optimizing database operations.
    • Offer practical examples and insights for continuous learning and improvement in database management.

    Importance of Understanding Execution Plans in Database Management

    Exploring SQL Execution Plans is pivotal for enhancing database management. Developed by the SQL Server Query Optimizer, these plans are beyond visual representation. They are strategic roadmaps for efficient data retrieval, guiding database queries to the fastest, most resource-efficient outcomes. This is why mastering SQL execution plans is a technical skill and a strategic asset.

    Bert Wagner has a great point: “Statistics are what the query optimizer uses to decide the best way to retrieve data.” With execution plans, leveraging this vital information becomes more accessible, enhancing database performance and minimizing resource use.

    Now, let’s explore the process of generating SQL Execution Plans and why it’s important in detail.

    Components of SQL Execution Plans

    SQL execution plans serve as a roadmap detailing how SQL servers execute queries. Understanding these plans is crucial for optimizing queries to improve performance.

    Understanding SQL Server Execution Plan Formats

    SQL execution plans can be viewed in two formats, depending on different needs and preferences:

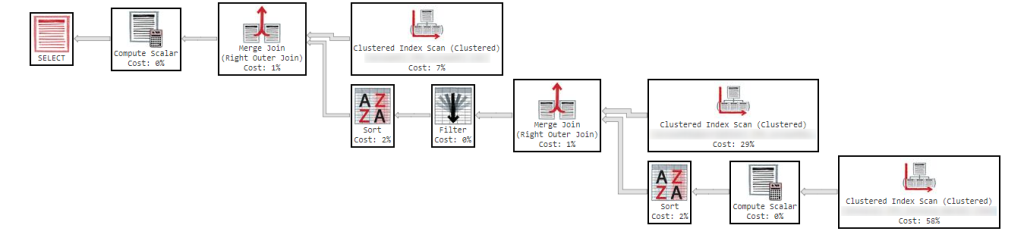

    1. Graphical Display: This format presents the execution plan as a flowchart, which reads from right to left. Each box in the flowchart represents a specific operation, such as sorting or searching. Its visual nature makes it particularly accessible for beginners, offering a clear picture of the query’s process.
    When to use it: if you’re running a complex query, or if it’s your first time viewing a query plan, the graphical display would be the best option.

    blog sql execution plan visual

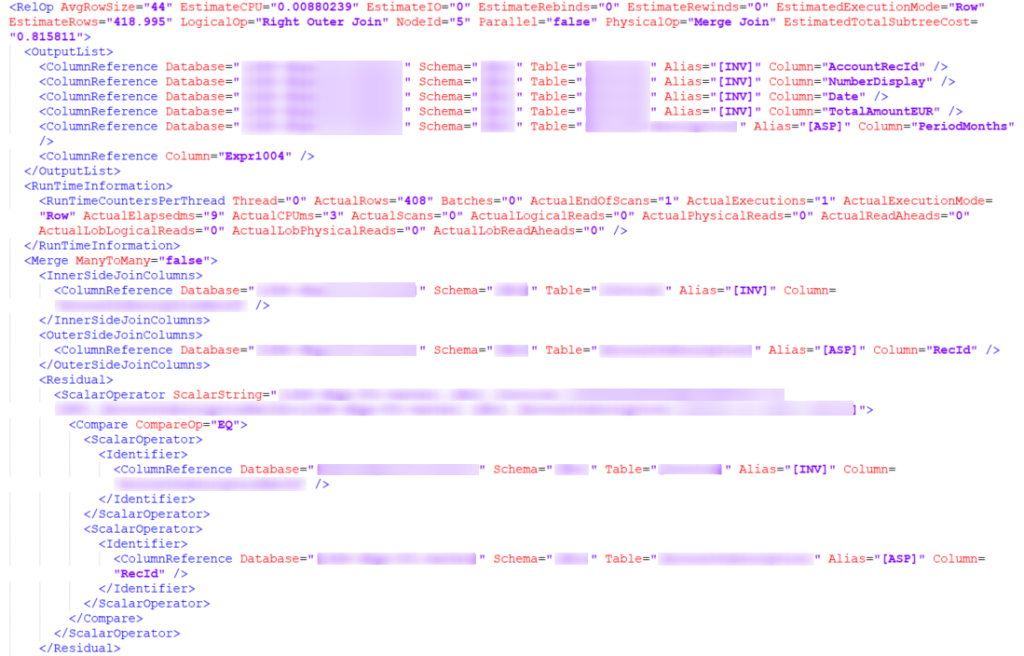

    2. Textual Display: Contrastingly, the textual format provides the plan in detailed text using keywords and syntax. It delivers a more precise representation of data but requires some background knowledge to decode effectively.
    When to use it: it’s a little bit more complicated to read, but it also provides more information on the operators. It’s the best option if you’re accustomed to analyzing execution plans.

    blog sql execution plan textual

    Exploring Different Components within an Execution Plan

    After familiarizing with the different formats of SQL execution plans, it’s crucial to understand their components. These components serve as the foundational blocks for the execution process.

    • Operators: These symbols illustrate the specific actions taken on the data, delivering tasks such as joining tables or calculating expressions.
    • Nodes (or Steps): Found primarily in graphical plans, nodes symbolically represent the operations carried out by operators. The color of a node can indicate its status: white nodes are computed, whereas blue nodes are not. This visual cue helps identify which parts of the query are being executed.
    • Data Flow Arrows: These arrows show how data moves between operators. The thickness of an arrow signifies the volume of rows moving from one operation to the next.

    However, it’s important to be cautious. Incorrect statistics can adversely affect query performance. Therefore, learning about these components and ensuring their accuracy is crucial for improving database efficiency.

    Generating SQL Execution Plans

    Have you ever wondered how your SQL Server processes a given query? Execution plans, like a projected outline, offer visibility into an SQL server’s operation. It’s like having a roadmap that outlines every turn and decision point. Let’s break down the process of generating these plans into actionable steps.

    How to Generate Estimated Execution Plans

    Creating an estimated SQL execution plan provides a projected outline of how SQL Server intends to execute the query before it’s run. It’s essential to consider the potential overhead of generating an estimated execution plan. While it provides a preview of the execution plan, this foresight may add to the overall processing time.

    However, this foresight enables the adjustment and optimization of queries for enhanced performance. Here are the straightforward methods to generate estimated execution plans:

    1. Via Management Studio: In SQL Server Management Studio (SSMS), right-click your query and choose ‘Display Estimated Execution Plan‘.
    1. Using Query Store: The query store, default enabled since 2022, is a powerful feature that tracks query performance for those using SQL Server 2016 or later.
    1. T-SQL Query: Add SET SHOWPLAN_XML ON; at the start of your T-SQL query to get the plan in XML format.

    Each method has its own advantages and may be subject to suitability depending on the tasks. Now that we understand the significance of generating estimated execution plans, let’s generate actual execution plans to gain deeper insight.

    How to Generate Actual Execution Plans

    Actual execution plans offer invaluable insights for a deeper analysis. These plans reveal precisely how SQL Server executed the query, providing accurate metrics and statistics. Let’s explore how to generate actual execution plans and factors to consider when choosing between estimated and actual plans.

    1. In SSMS: Enable ‘Include Actual Execution Plan‘ before executing a query to access a comprehensive post-execution analysis.
    1. With T-SQL, Use the command SET STATISTICS XML ON to generate a detailed XML version of the execution plan.
    1. Live Query Statistics is available in new SSMS versions, and this feature showcases the query’s live execution path.

    When selecting between estimated and actual plans, factors like system performance impact and required detail level influence the choice. The next task is to interpret and analyze these plans. This step allows us to decode query performance and pinpoint inefficiencies.

    Improving Query Performance with Execution Plans

    Utilizing Execution Plans to Optimize Query Performance

    To boost query performance using SQL Execution Plans, consider the following steps:

    • Analyze Node Costs: Investigate the costs associated with each node’s operations. Nodes with high costs often highlight potential bottlenecks that require attention. We’re going to dive into this point in the next section.
    • Review index usage: Examine whether existing indexes are being used effectively or if new ones need to be created.

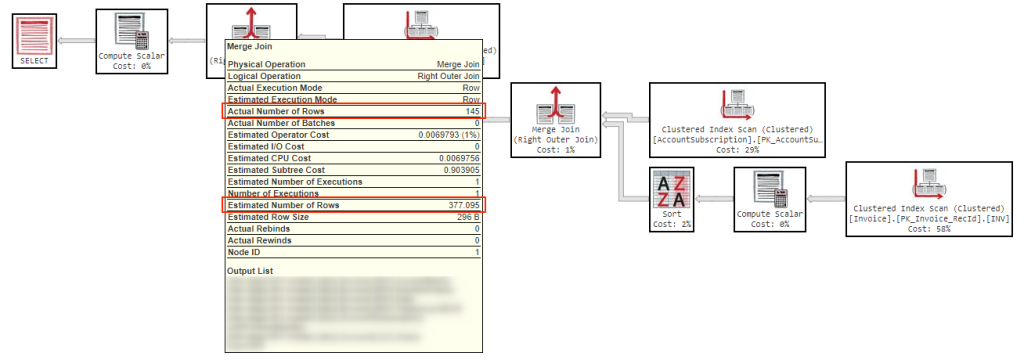

    • Row Estimates vs. Actual Rows: Discrepancies between estimated and actual row counts suggest outdated statistics, which may mislead the optimizer. Updating statistics may result in more accurate execution plans and improved performance. In our example, we do have a delta between Estimates and Actuals which can mean two things:
    blog sql execution plan estimates actuals
    1. If the estimates are significantly off, this can lead to suboptimal query performance. The optimizer might choose a different join type, decide to add or not an index in the database.
    2. Sometimes, certain query conditions like complex joins such as the one we used (right outer join) make it hard for the optimizer to accurately estimate the number of rows.
    • Refine SQL Code: Adjust the SQL code based on insights obtained from the analysis.
    • Repeat!

    Keep in mind that best practices offer direction; not every rule fits every query—each one is different and requires tailored treatment.

    Analyzing High-Cost Operators in Execution Plans

    A key focus in SQL execution plan analysis is on high-cost operators, which are significant resource consumers, such as CPU time and disk Input/output. Identifying and mitigating these critical elements is vital for boosting performance and efficiency.

    Identifying and Addressing Highest Cost Operators

    After identifying high-cost operators, apply techniques to reduce resource usage. Operations like table scans and hash matches are crucial for improving performance.

    Hugo Kornelis highlights the “QueryTimeStats node” in execution plans as particularly useful. It offers a detailed view of the total time taken by the plan, including CPU and elapsed time, aiding in the identification of particularly demanding operations. To efficiently streamline your queries, consider the following:

    • Table Scans: Reduce the frequency of table scans by adding appropriate indexes.
    • Sorting Operations: Leverage pre-sorted data or modify queries to minimize sorting.
    • Hash Matches: Consider alternatives like nested loops if suitable for a more resource-efficient approach.

    Best Practices for Enhancing Query Efficiency

    Below are some of the best practices to refine your SQL queries for optimal performance:

    • Keep Your Queries Simple: Complex joins and nested operations can complicate the optimizer’s task of creating an efficient execution plan. Aiming for simplicity can make SQL Server’s job easier.
    • Use Appropriate Data Types: Ensuring table columns and variables utilize the most suitable data types reduces the necessity for costly casting or conversion operations during query execution.
    • Incorporate Indexing Wisely: Indexes are potent tools for decreasing data retrieval times. Strategic use of Indexing can balance performance improvements against resource demands.
    • Stay Updated with Statistics: SQL Server uses statistics for query planning. Up-to-date statistics lead to improved execution plans.

    Conclusion and Next Steps

    Unraveling the complexities of SQL Execution Plans is a crucial stride toward optimizing data management and enhancing query efficiency. Learning to generate, interpret, and utilize these plans can significantly improve SQL query performance and overall database operations.

    Tailoring SQL queries based on insights from given plans can lead to marked improvements in database performance.

    Mastering this skill set requires a commitment to ongoing learning and hands-on practice. Analyzing complex queries and their execution plans sharpens skills and refines optimization strategies.

    Next Steps:

    • Integrate and Practice: Embed these strategies into daily workflows and tackle complex query challenges.
    • Advance Further: Gear up for in-depth exploration of managing high-cost operators and refining complex queries for advanced proficiency.
    • Embrace Continuous Learning: Achieving mastery in database management is an endless journey of improvement.
