    Data modeling is a way of structuring databases, showing how data is linked, stored, and accessed. This maintains data accuracy and consistency and makes using the database for various data administration purposes easier.

    A well-defined data model is essential in data analysis. It gives analysts a clear framework, helping them extract valuable insights and make sound decisions.

    What is Data Modeling, and Why is it Important in Data Analysis?

    The data modeling process involves creating three distinct but interconnected models:

    • conceptual: the “what” model
    • logical: the “how” of the details
    • and physical: the “how” of the implementation

    Each model is developed in a specific sequence, let’s take an example below:

    conceptual model example

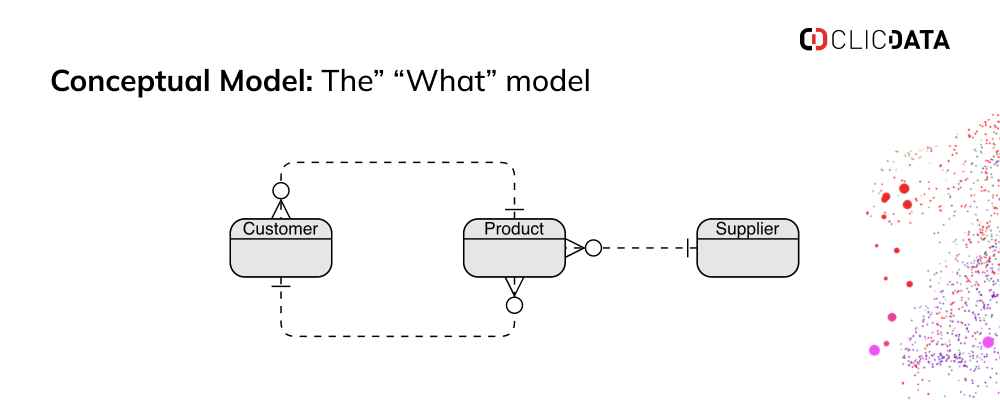

    The conceptual model focuses on what data is needed and how it should be organized at the most abstract level.

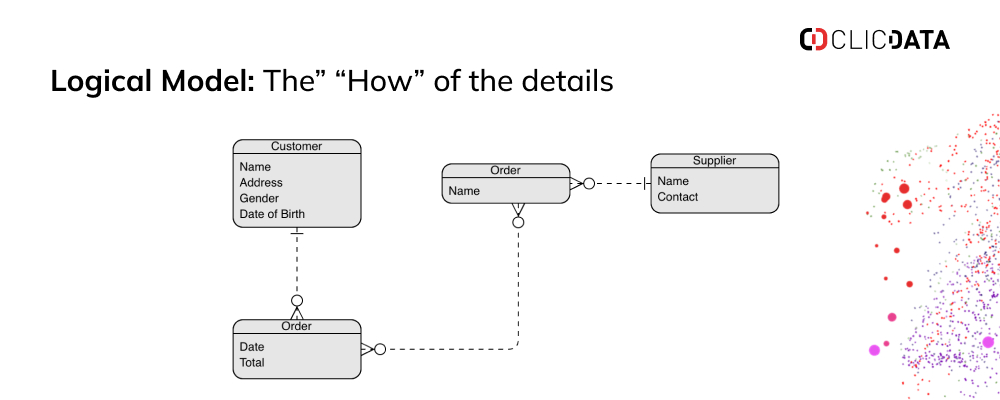

    logical model example

    The logical data model refines the entities and relationships, adding attributes and establishing rules to provide a more comprehensive view of the data structure.

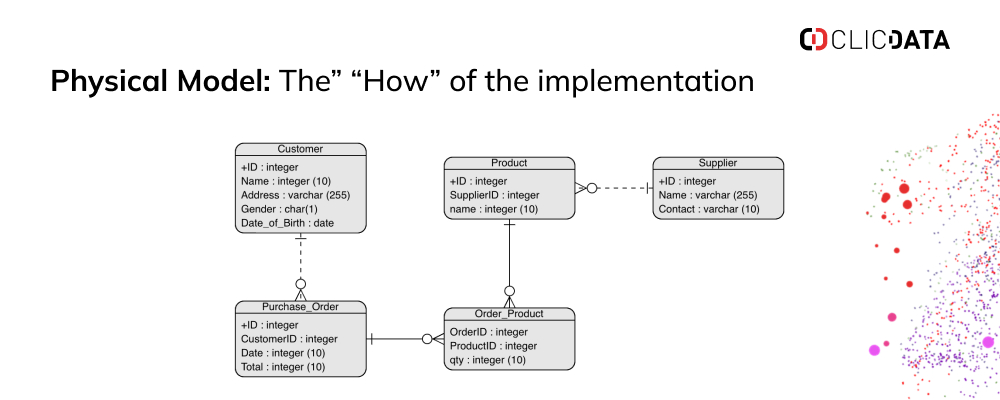

    physical model example
    Images made with Visual Paradigm

    The physical model specifies how the data will be stored in the database, including the tables, columns, keys, and indexes. The goal? To make it ready for technical execution and use it in database systems.

    A well-constructed data model enables analysts to:

    • Accurately generate meaningful data reports
    • Correctly interpret data
    • Quickly extract relevant insights

    The above all form the backbone for making informed decisions.

    Common Data Models (With Examples)

    There are primarily five common data model types. Let’s take a closer look at each data model in more detail.

    JSON Data Model

    The JSON (JavaScript Object Notation) transmits data in web applications and stores information. It’s based on two primary structures: objects, represented as collections of key-value pairs enclosed in curly braces {}, and arrays, which are ordered lists of values enclosed in square brackets [].

    Keys are strings, and values can be strings, numbers, arrays, or even other objects. This allows for hierarchical and complex data structures.

    For example, a simple JSON data model representing a person might look like this:

    "firstName": "John",
    "lastName": "Doe",
    "age": 30,
    "addresses": [
    "type": "home",
    "street": "123 Main St",
    "city": "Anytown",
    "state": "CA"
    "type": "work",
    "street": "456 Corporate Blvd",
    "city": "Bigcity",
    "state": "NY"

    In this example, the JSON model describes a person with a first name, a last name, an age, and a list of addresses. Each address is an object itself with type, street, city, and state properties.

    Graph Data Model

    Data is organized into nodes (entities), edges (relationships), and properties (information about the nodes and edges).

    Nodes depict various entities, such as individuals, locations, or objects. Edges demonstrate connections between these entities. Properties provide additional details about both nodes and edges.

    This model excels in scenarios where relationships are as important as the entities themselves, such as social networks, transportation networks, or biological systems.

    Text Search Data Model

    This model can handle a wide range of data types, including plain text, web pages, and documents in various formats.

    For example, in a text search data model for a library catalog, each book might be indexed by its title, author, summary, and keywords.

    When a user searches for a specific term, like “ancient civilizations,” the search engine quickly scans the indexes to find matching documents, providing results that include books related to ancient civilizations.

    Key-Value Data Model

    In this data mode, keys allow for quick retrieval of the corresponding values. This model is highly efficient for read-heavy operations, especially when dealing with large data sets.

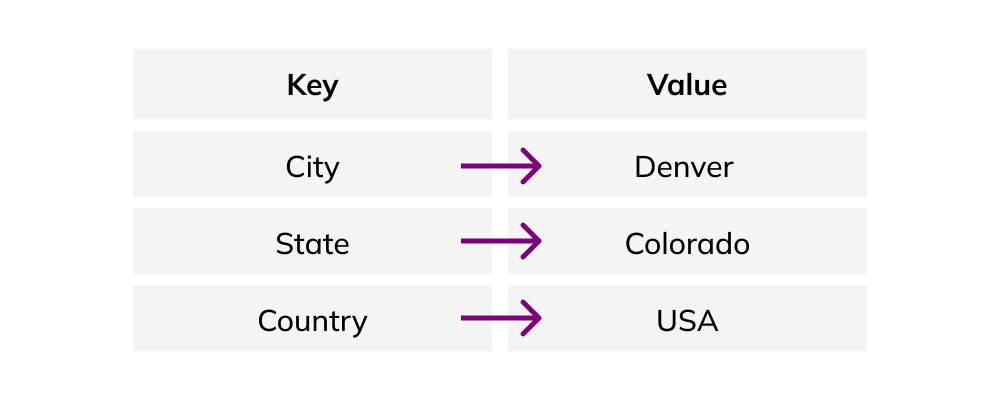

    key value data model example
    example of a key-value data model

    In this system, each city, state, and country serves as the key, and the value is the name of the place.

    When a user accesses the system, the location information is used to rapidly fetch the specific location details.

    This model’s simplicity and speed make it popular for applications requiring fast data access and straightforward storage mechanisms (think caching layers and real-time recommendation engines).

    Relational Data Model

    The relational data model is a widely used approach that organizes data into tables (relations) consisting of rows and columns. Each table represents a specific type of entity, with each row representing a unique instance or record of that entity and columns storing the entity’s attributes.

    The power of the relational model lies in its ability to establish relationships between different tables using foreign keys, which reference primary keys in other tables.

    For example, in a relational data model for a grocery store, you might have one table for “Products,” one for “Customers,” and another for “Transactions.”

    Each table has an ID, which is referenced in the other tables to establish a relationship. In this case, the database can identify transaction details by customer and products purchased.

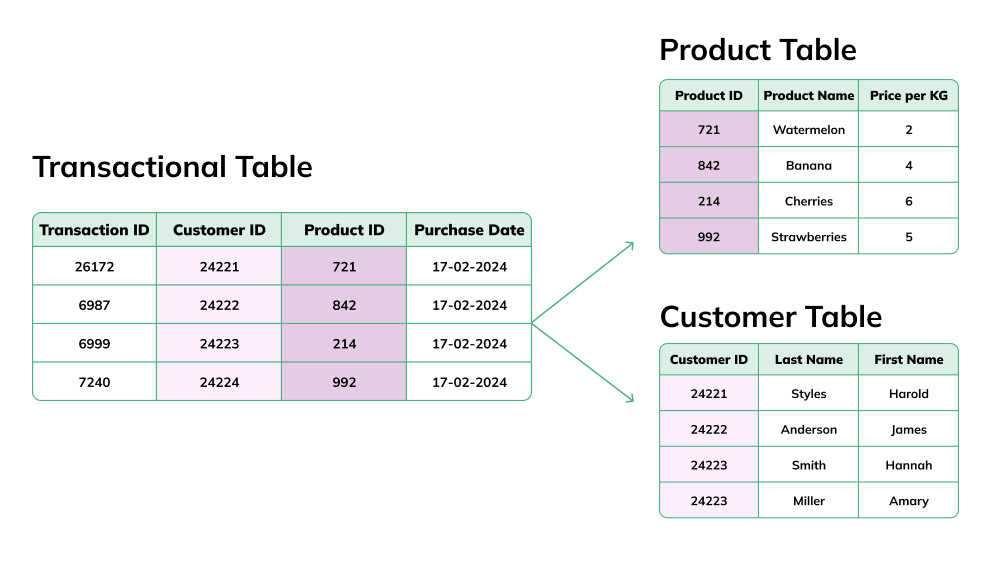

    example relational data model
    example of a relational data model

    This model facilitates complex data queries and updates through structured query language (SQL) and protects data integrity through established relational rules.

    3 Best Data Modeling Tools (With Examples)

    Now, let’s take a look at data modeling tools that can help you build these common data models.

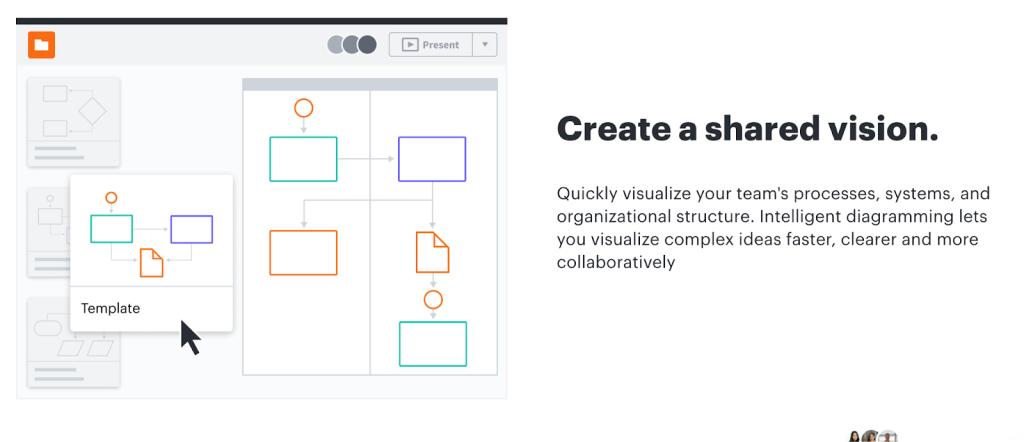

    Lucidchart’s intuitive drag-and-drop interface allows users to build various data models without requiring deep technical expertise, including ER diagrams, UML diagrams, and more.

    Lucidchart enables multiple users to work on the same model simultaneously, making it ideal for team-based projects.

    The tool offers a vast library of pre-built data modeling templates and shapes, which can be customized to suit specific modeling needs.

    Additionally, Lucidchart integrates with other tools and platforms, such as Google Drive, Confluence, and JIRA, allowing users to seamlessly embed their models into different workflows.

    Starting price: Free (allows up to three documents)

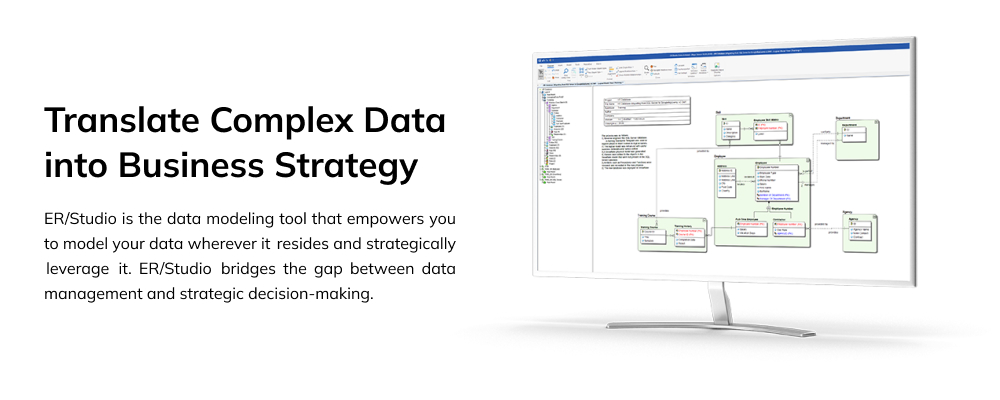

    ER/Studio’s standout feature is its comprehensive support for multiple database platforms, which allows users to develop consistent models across various environments.

    ER/Studio facilitates both logical and physical data models. Users can abstractly define data structures and then implement them in specific database systems.

    The tool offers detailed comparison and merge functions, which are crucial for synchronizing models with existing databases and managing changes over time.

    Additionally, the tool includes extensive capabilities for generating reports and detailed visual data lineage. This feature helps organizations understand data sources, transformations, and dependencies.

    Starting price: $1,470 for one user

    SQL Database Modeler

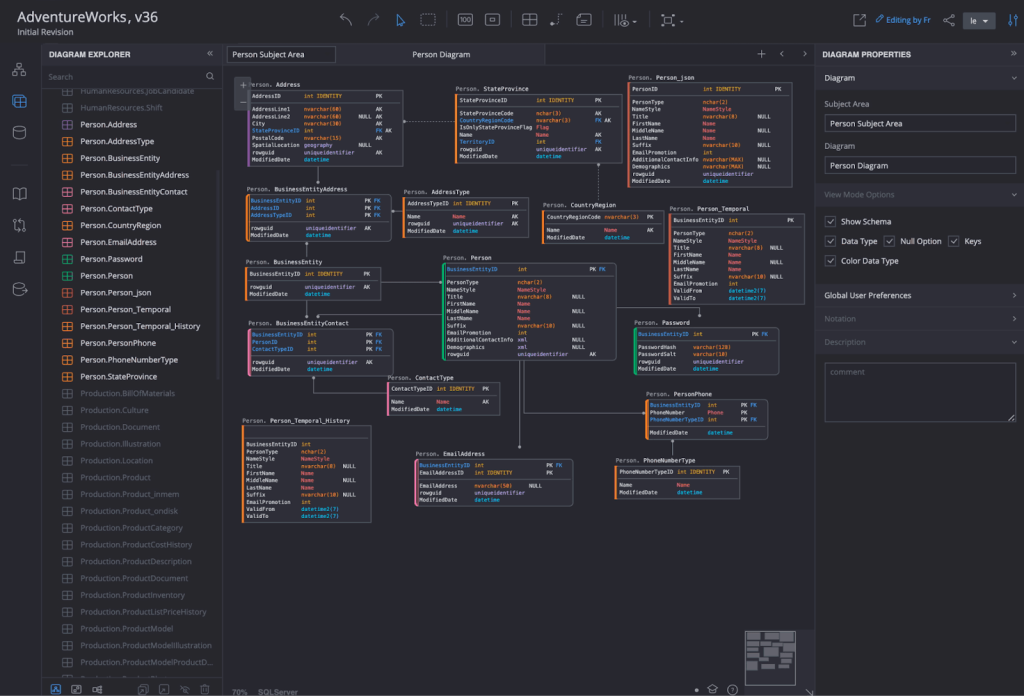

    SQL Database Modeler is a web-based data modeling tool that allows users to design their database structure visually and generate SQL scripts automatically. Users can also connect to an existing database to visualize and modify its schema.

    Features like diagram export allow users to export their database diagrams in various formats for documentation and presentation purposes.

    SQL Database Modeler is a practical choice for experienced database professionals and those new to database modeling.

    Starting price: $4,000 for two users

    Best Practices for Getting the Most Out of Your Data

    Employ these six practices to continue getting the most out of your data in the long term.

    Keep it Simple

    Keeping your workflow and data analysis simple and streamlined is beneficial because it helps maintain focus on the essential goals and outcomes.

    Simplified processes with helpful visual representations facilitate clearer communication. In other words, they help stakeholders grasp the analysis results and the rationale behind decisions.

    Keep Goals in Mind

    Every KPI selected for monitoring should directly correlate to your relevant business goals. Measure them along the way to help you reflect progress or performance in those areas.

    This targeted approach to data collection guarantees that resources aren’t wasted on gathering irrelevant or extraneous information. Specific KPI tracking dashboards can help streamline the data collection and analysis process even further.

    Avoid Premature Optimization

    Sometimes, optimization efforts waste valuable time and resources on enhancing aspects that may not matter.

    By avoiding premature optimization, your teams can prioritize developing a robust and functional system or analysis framework first, ensuring it meets the core requirements and objectives.

    Once the system is established, then you can make targeted optimizations.

    Choose the Right Data Modeling Technique

    The selection should be based on the project’s specific requirements and constraints, including the data, the intended use cases, scalability needs, and the technical environment.

    This deliberate selection process guarantees the data model provides a strong foundation for the system or application, facilitating efficient data operations and insightful analysis.

    Also, don’t forget about data security when choosing the proper modeling techniques for your organization. You can never be too safe when it comes to protecting your sensitive information.

    For instance, incorporating container security best practices measures is a great way to protect the integrity and confidentiality of your data models, safeguarding the data analysis process from unauthorized access and potential vulnerabilities.

    Document Everything and Adjust as Needed

    By documenting and analyzing user interactions through session replay, you can gain insights into how customers engage with your digital platforms.

    This enables data analysts to refine and adjust data models based on real-world user behaviors, ensuring they accurately reflect customer preferences and interactions.

    It also provides a dynamic feedback loop that allows you to continually refine your data models. The goal is to keep them relevant and effective in capturing and interpreting user data.

    Incorporating session replay into your documentation process is the recipe for success in improving your data modeling practices. The result? More accurate analysis and better decision-making.
